Status: Keysight USED instrument(from Keysight, not from market), good working/tested
Send host only, without any attachments
Seller reminder:normal working condition.
60-day warranty---The products sold are Keysight official direct supply & Tested
Highlights
Bandwidth:
Bandwidth: 7 GHz
Range:
Dynamic Range: +/- 2.5V
DC Offset Range: +/- 12V when using probe offset
Maximum Voltage: +/- 30V
Input Impedance:
Differential Input R: 50 kOhm
Differential Input C: 0.27-0.34 pF
Single Ended Input R: 25 kOhm
Single Ended Input C: 0.44-0.67 pF

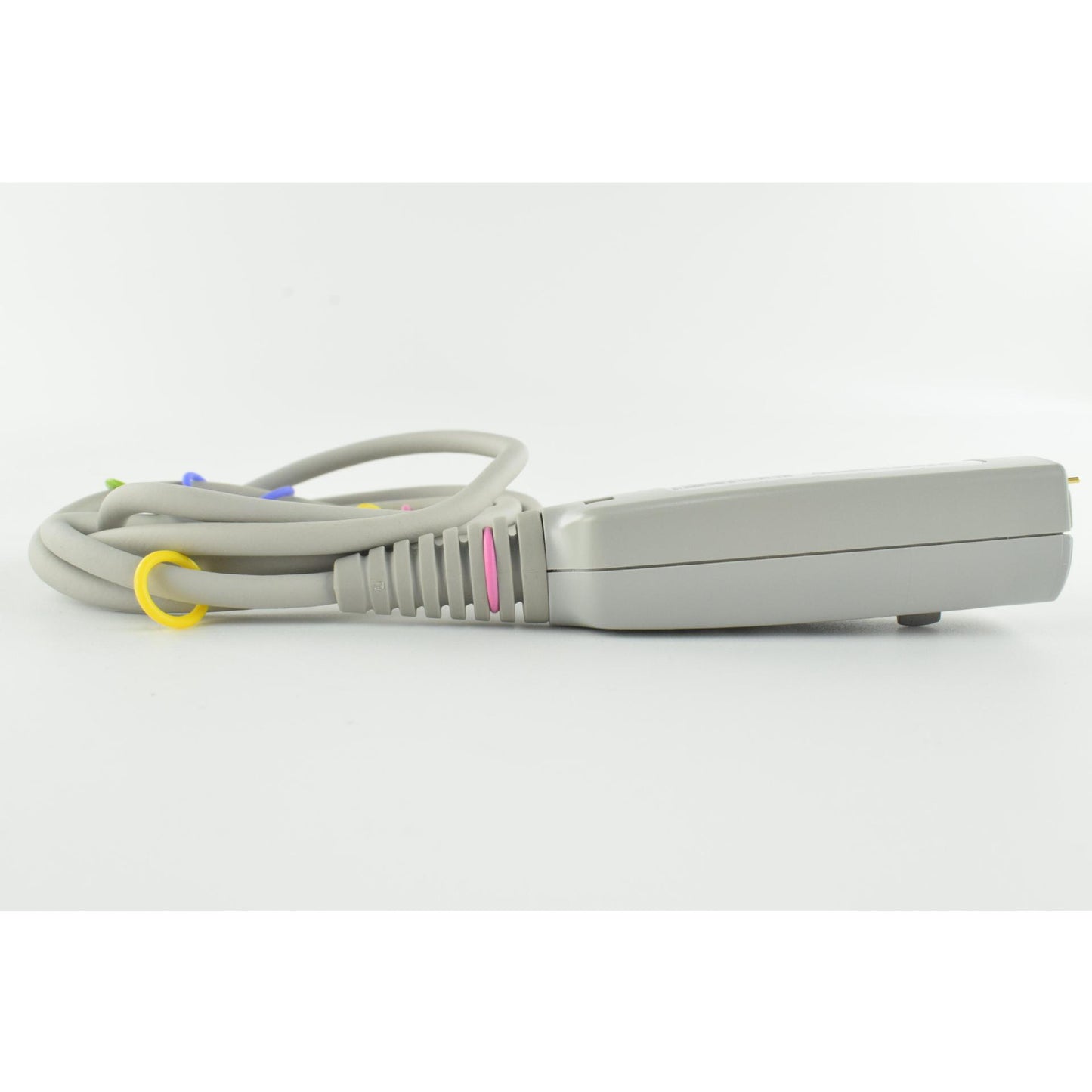

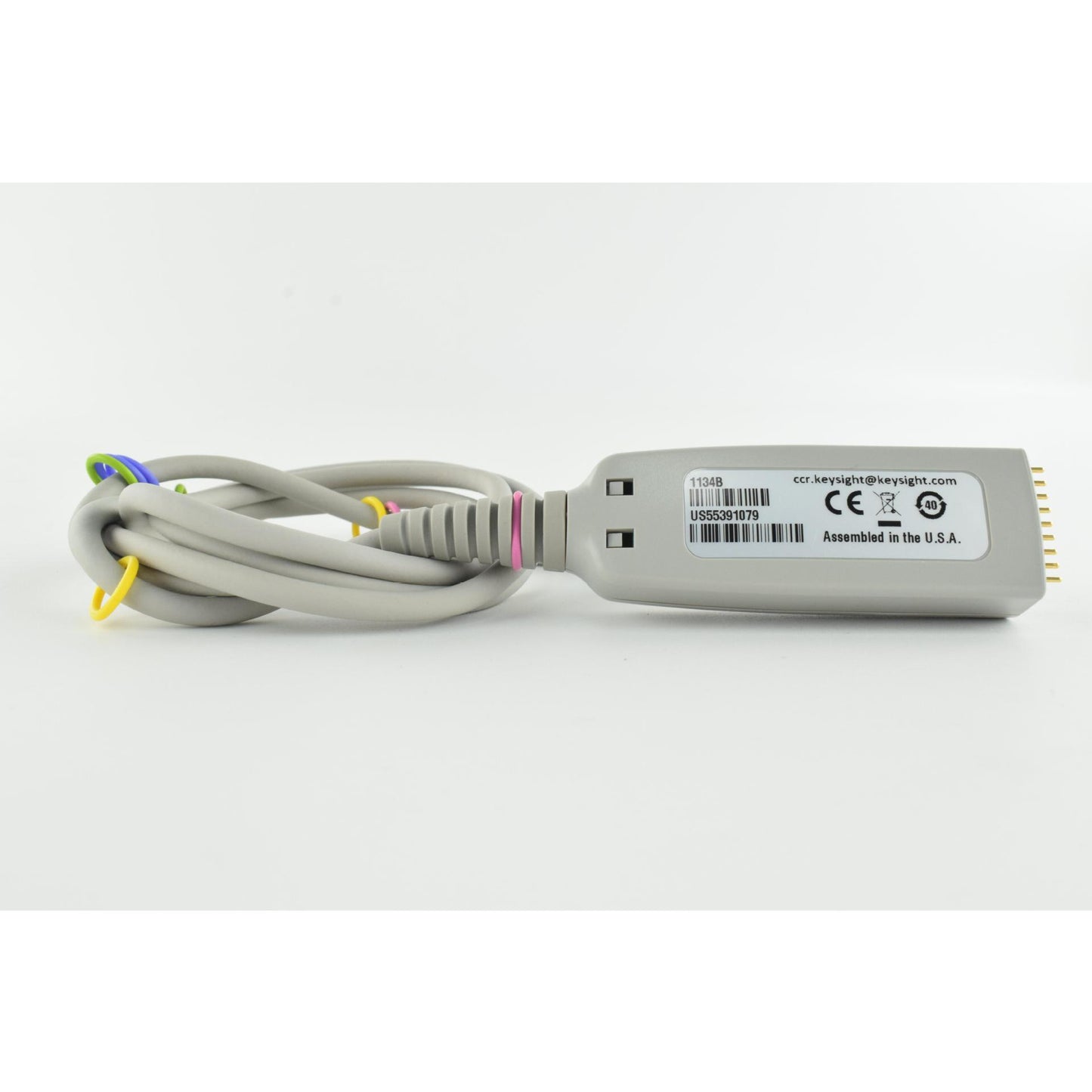

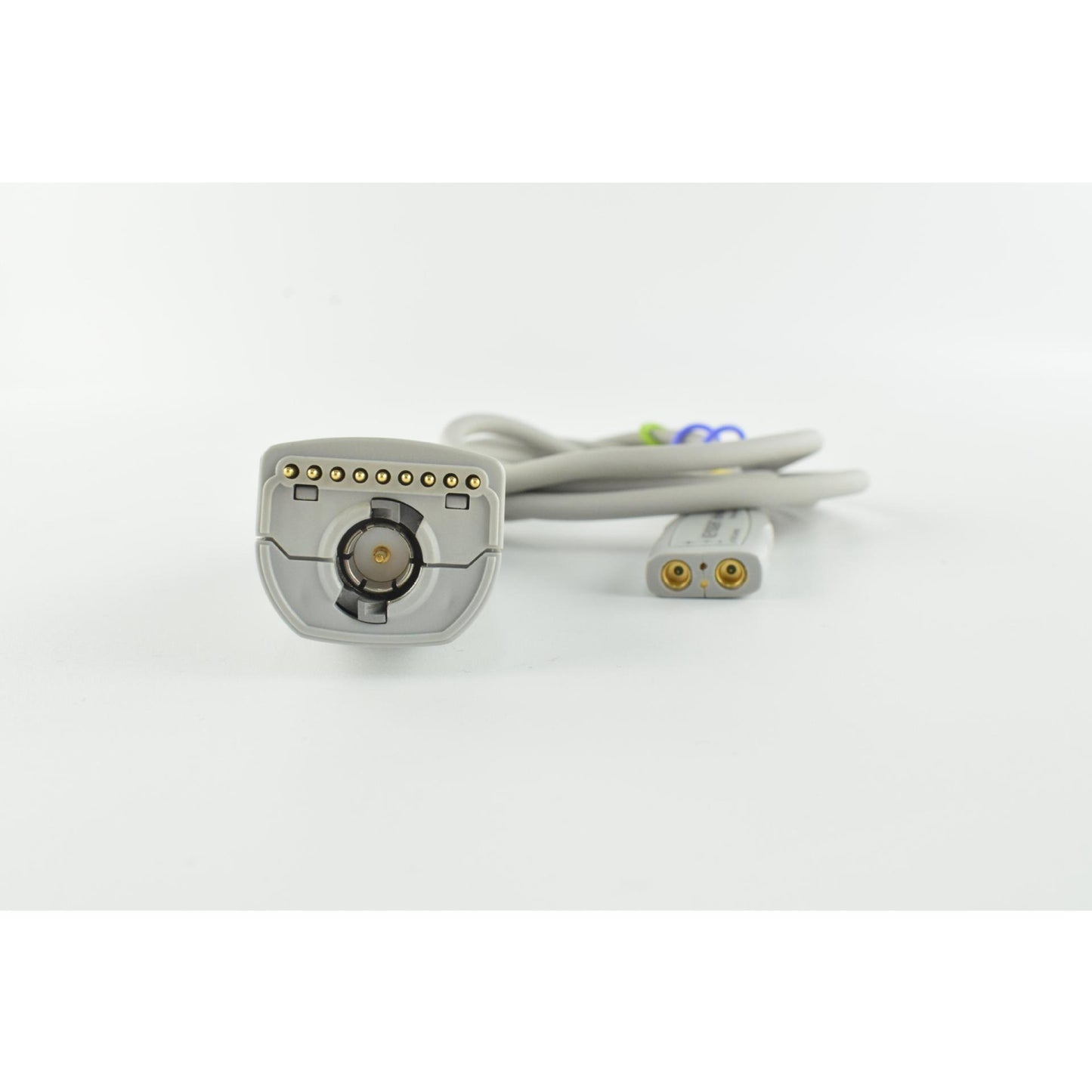

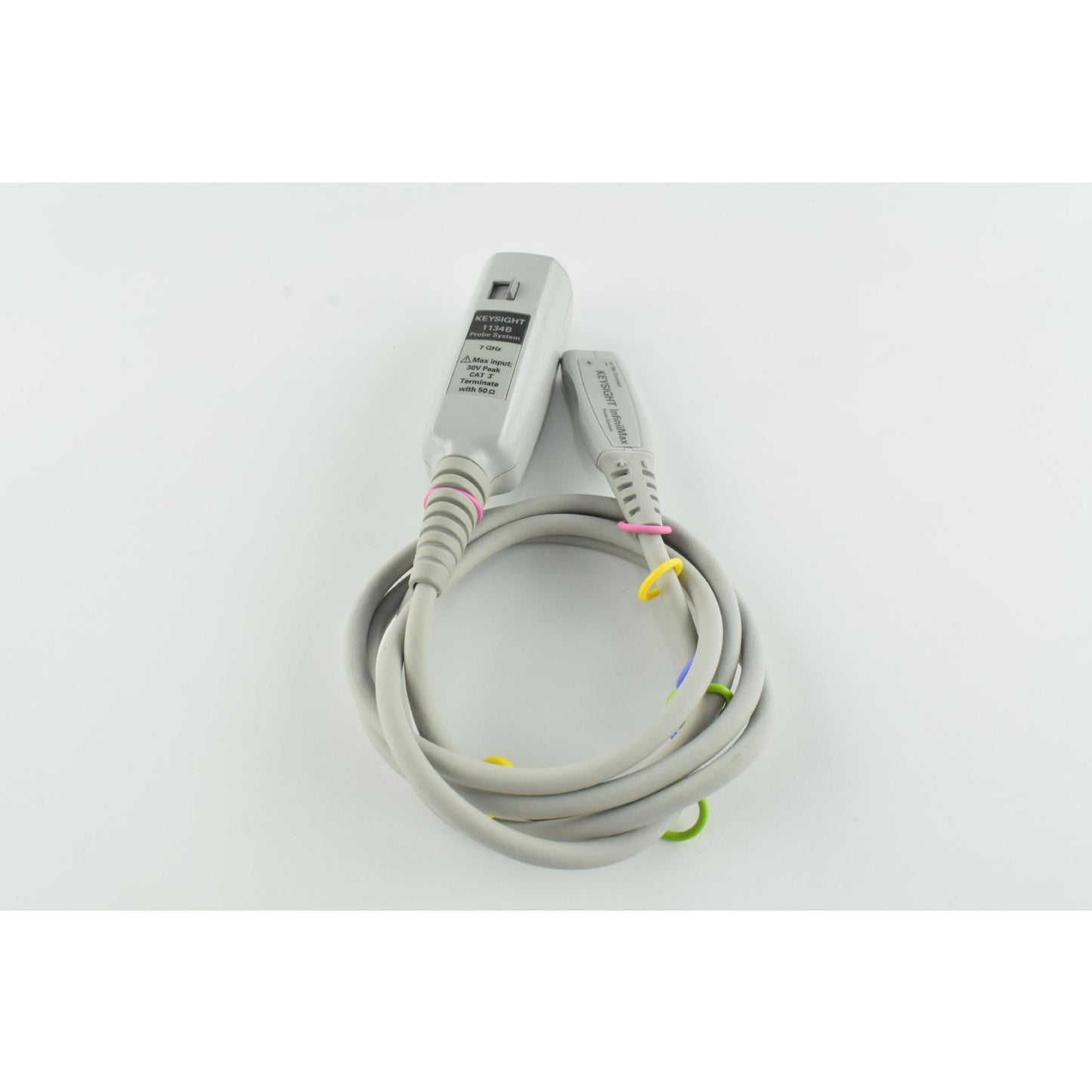

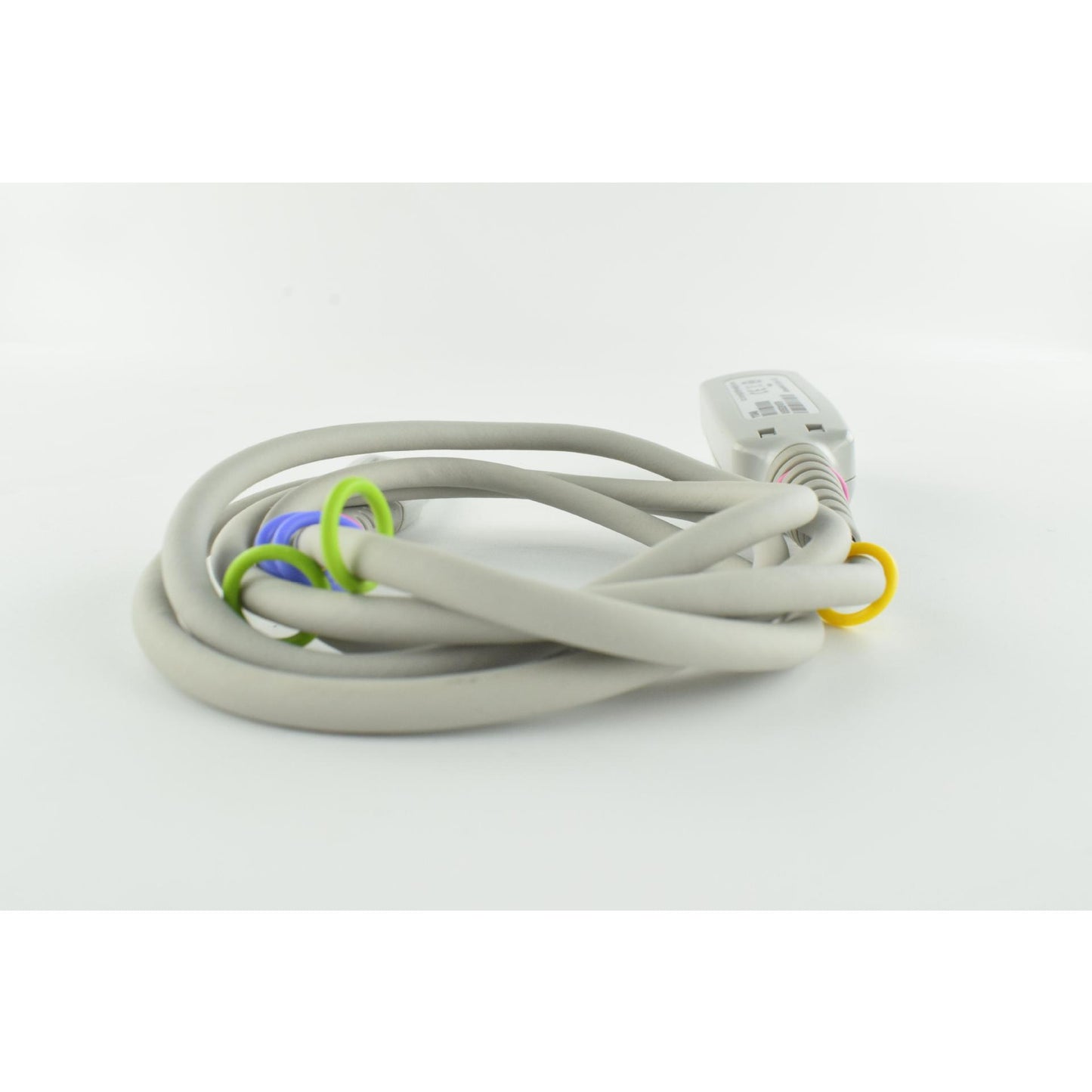

For high-speed differential or single-ended probing in embedded designs, the InfiniiMax 7 GHz 1134B differential probe amplifier is a perfect complement to Infiniium 6 GHz oscilloscopes.
Its extremely low input capacitance, flat frequency response and resistor probe tip technology provide ultra-low loading of the DUT and superior signal fidelity.
The InfiniiMax 1130B-34B Series supports a wide variety of real-world applications with an extensive line up of probe heads and accessories.
The accessories can meet the most demanding mechanical access requirements.
The 1134B is the RoHS compliant version of the 1134A. The 1134B is 100% form, fit, function and price equivalent to the 1134A.
